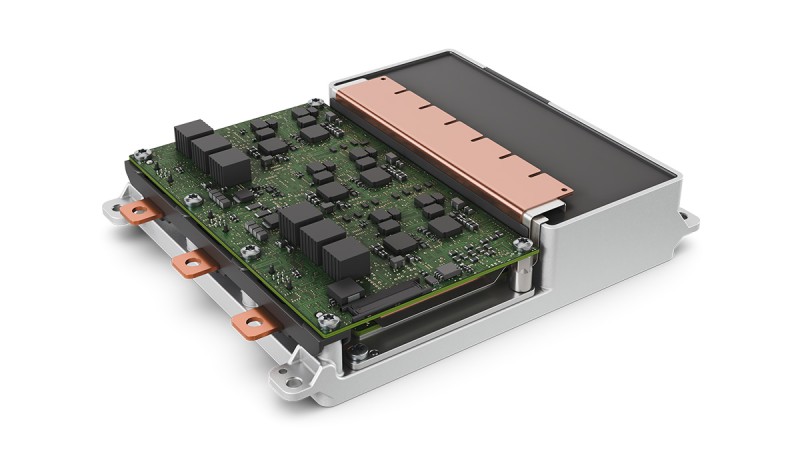

HV Inverter Brick - Embedded
Our inverter subassembly is the essential power device building block (brick) to control the electric drive via logic signals. Offering a flat design and easy to integrate into small spaces, this inverter brick with an embedded power module optimizes power density and control in a compact module. Out of the inverter platform, it integrates all necessary functionalities and submodules, permitting easy adaptation to diverse specifications required in automotive applications.
Highlights
- Compact design
- High power density and flat
- High efficiency
Advantages
- modular and scalable
- high power density with embedded power module
- Flat design for axle drive integration
- High efficiency due to low thermal resistance and low stray inductance
- Scalable and flexible electronic functions out of platform
Features
Inverter brick type
- Single inverter flat
- embedded power module
- DC-Link capacitor
- Gate drive board functions:?power supply, intelligent gate drive, voltage and temperature sensors
- 400 V und 800 V
- up to 650 Arms
- High Efficiency
